REFLEX CES DevKits

REFLEX CES has developed many FPGA Development Kits and FPGA modules.
This page highlights some of REFLEX CES’ newest and most powerful kits, based on Arria 10 FPGA.

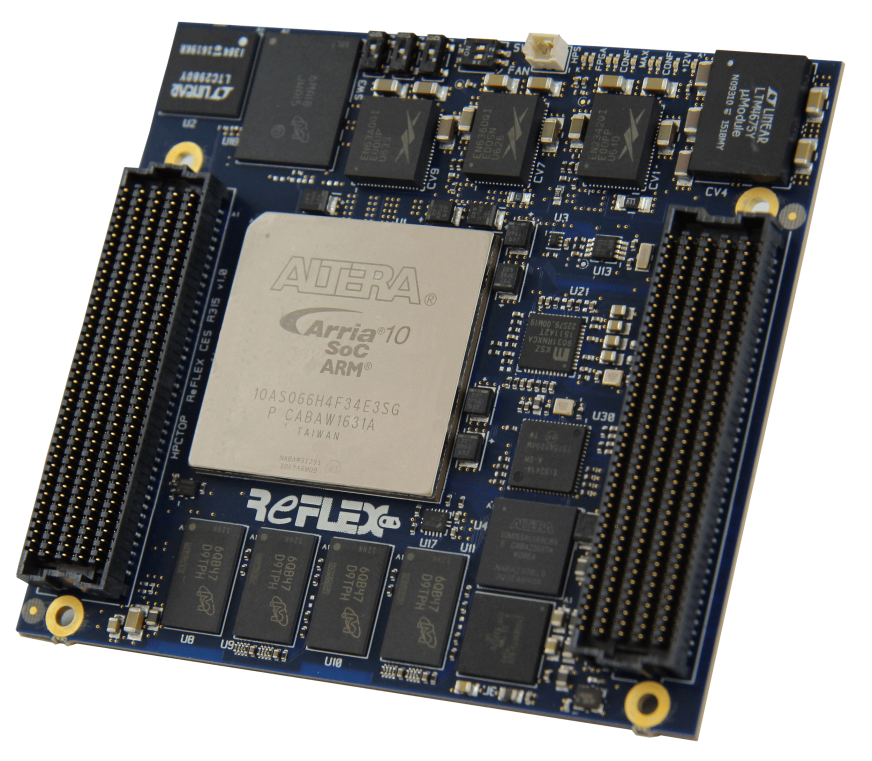

-1- Achilles Instant-Development Kit Arria 10 SoC SoM
info document - PNG - 2.1 Mb
The Arria 10 SoC SoM provides to developers the best Out-Of-The box experience combining the Best-In Class compact hardware platform and the most efficient intuitive software environment. Featuring an ARM dual-core Cortex-A9 MPCore and up to 660KLEs of advanced low-power FPGA logic elements, the Arria 10 SoC combines the flexibility and ease of programming of a CPU with the configurability and parallel processing power of an FPGA.

Target markets : Automotive, Video Broadcast, Machine and Intelligent Vision, Industrial, Military, Test & Measurement and Medical.

Benefits and features :

  • Ultra compact form factor at only 86x95 mm (3.4x3.8 inches) is ideal for area constrained applications.
  • Careful board layout enables superior signal integrity, support for multi-Gigabit serial protocols, including PCIe Gen3 and 10G Ethernet.
  • Achilles Instant-DevKit is comprised of the Arria 10 SoC SoM plus a Starter board for quick prototyping and application testing.
  • Comprehensive reference designs available enable out-of-the-box experience, designs provided with source code.
  • Standard Linux Debian support, allows seamless porting of existing application software.

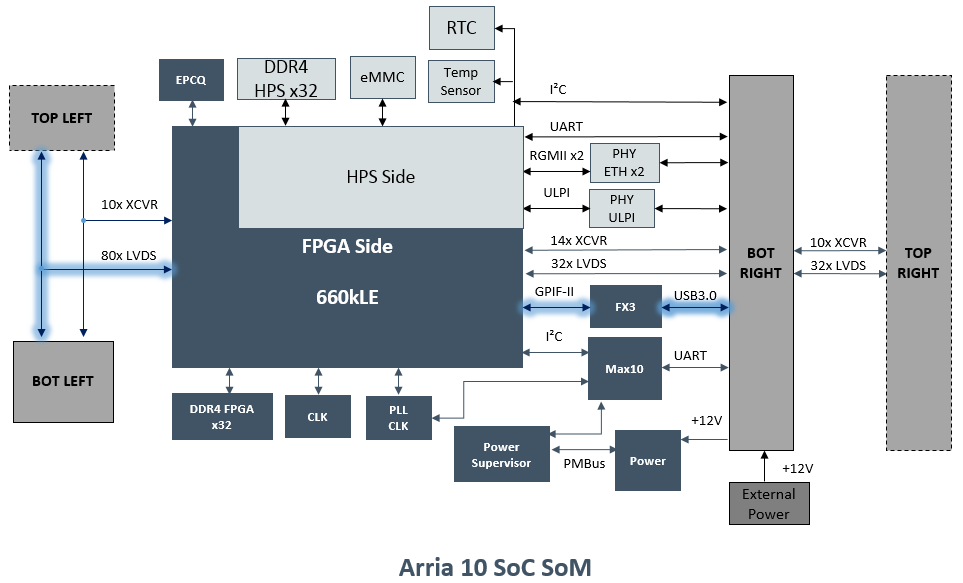

Block diagram of Achilles Arria 10 SoC SOM - PNG - 44.4 kb
Block diagram of Achilles Arria 10 SoC SOM

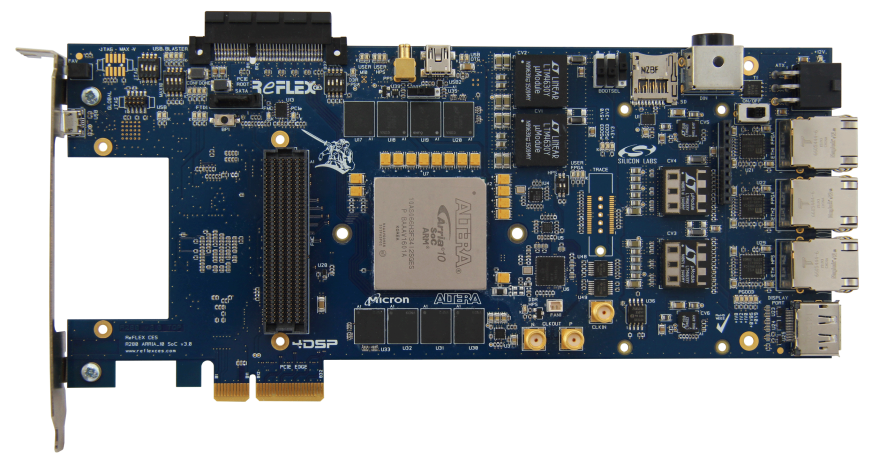

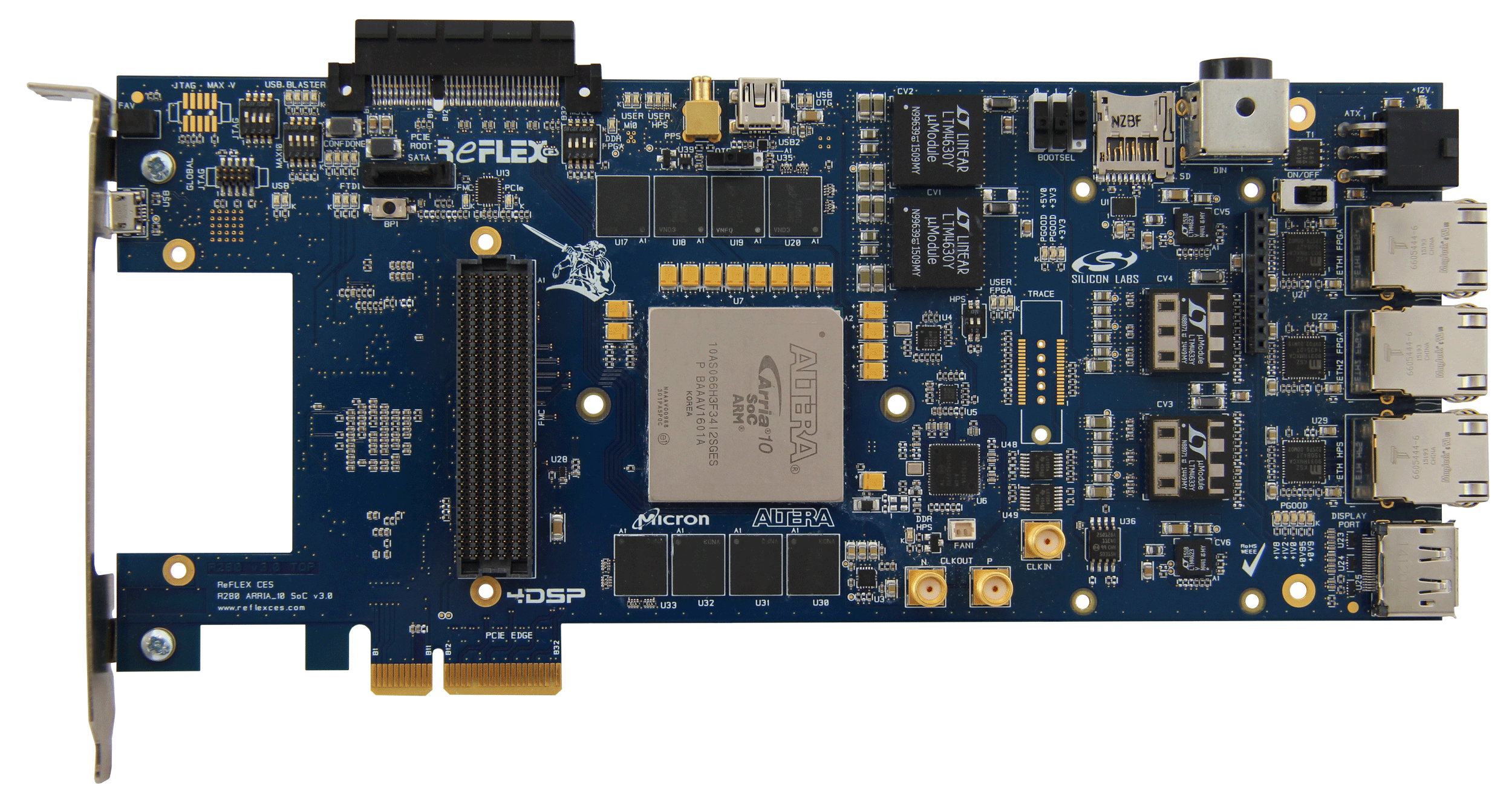

-2- Alaric Instant-Development Kit Arria 10 SoC FMC PCIe board
info document - PNG - 1.2 Mb
The Arria 10 SoC FMC Instant-Development Kit provides to developers the best Out-Of-The box experience combining the Best-In Class compact hardware platform and the most efficient intuitive software environment.

Its unique install and GUI interface allows an immediate start, and its reference designs enable fast turn-around designs shortening and securing the developments.

Target markets: Video capture and processing, Industrial, Test & Measurement and Medical.

Benefits and features :

  • Designed for high performance serial transceiver applications using series 10 SoC
  • Arria 10 SoC 660 KLEs in F34 package compliant 660 KLEs
  • PCIe device with 4 lanes at 8 Gb/s link rate (Gen3) and PCIe root with 4 lanes at 8 Gb/s link rate (Gen3)
  • Advanced memory interface with DDR3 on board Memory up to 4GB
  • Develop networking applications with 10/100/1000 Mbps Ethernet (GMII, RGMII and SGMII​)
  • Implement Video display applications with Display output port (up to 5.4Gbit/s)

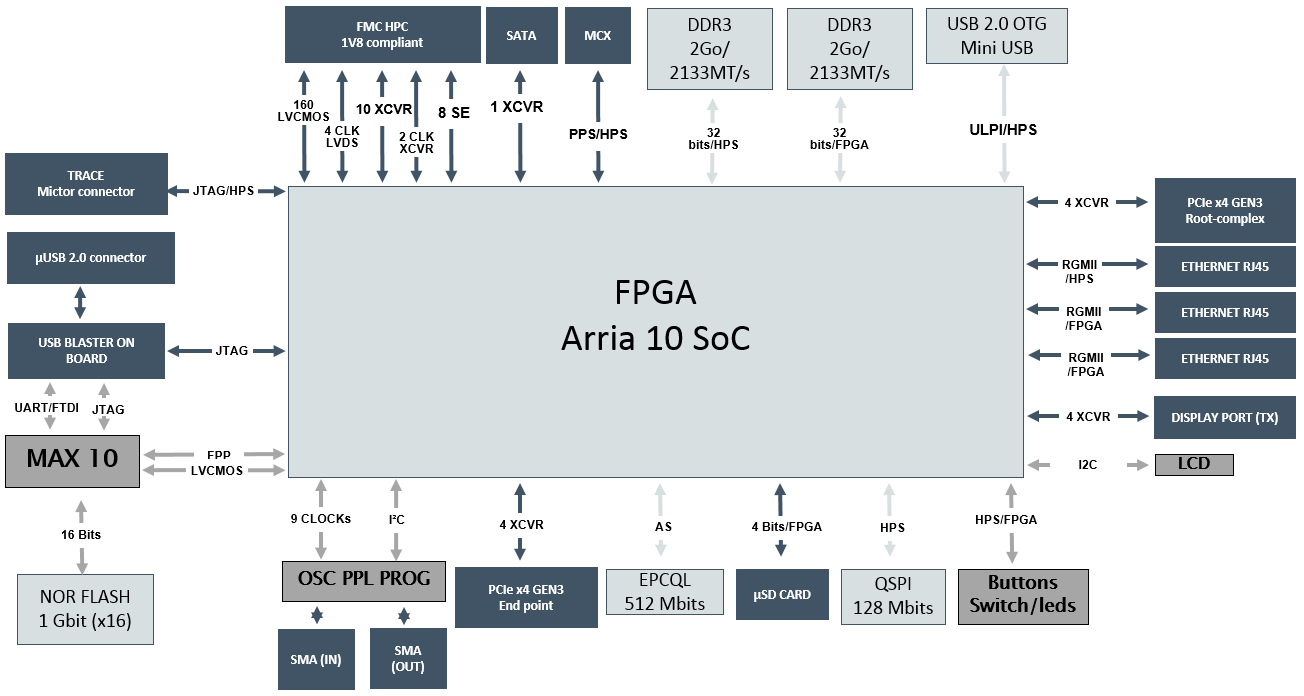

Block diagram of Alaric Arria 10 SoC - PNG - 63.1 kb
Block diagram of Alaric Arria 10 SoC

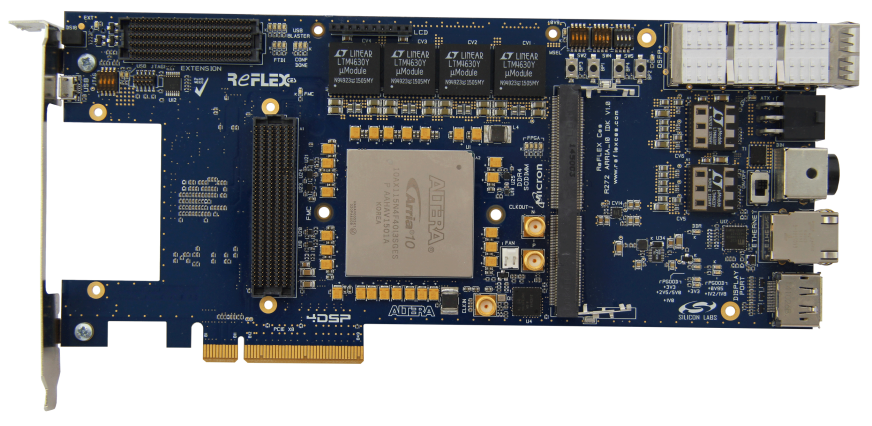

-3- Attila Instant-Development Kit Arria 10 GX FMC PCIe board
info document - PNG - 1.1 Mb
The Arria 10 FPGA FMC Instant-Development Kit provides to developers the best Out-Of-The box experience combining the Best-In Class compact hardware platform and the most efficient intuitive software environment.

Its unique install and GUI interface allows an immediate start, and its reference designs enable fast turn-around designs shortening and securing the developments.

Target markets : Test & Measurement, Video capture and processing, High Performance Computing, Finance, Industrial and Medical

Benefits and features :

  • Designed for high performance serial transceiver applications
  • Arria 10 GX 1150 KLEs
  • PCIe with 8 lanes at 8 Gb/s link rate (Gen3)
  • Advanced memory interface with DDR4 SODIMM Memory up to 16 GB, support ECC and Non ECC
  • Enabling serial connectivity with QSFP+ with 4 XCVR links: 12.5 Gb/s per link
  • Develop networking applications with RJ45 copper connector 10/100/1000 Base-T Ethernet (Through RGMII PHY​)
  • Implement Video display applications with Display output port Rev 1.2 (up to 5.4Gbit/s)
  • Expand I/O connector with 2 connectors in order to improve a front end of 32 high speed link
  • On board programmable PLL oscillator (Si5341), highly flexible and configurable clock generator/buffer

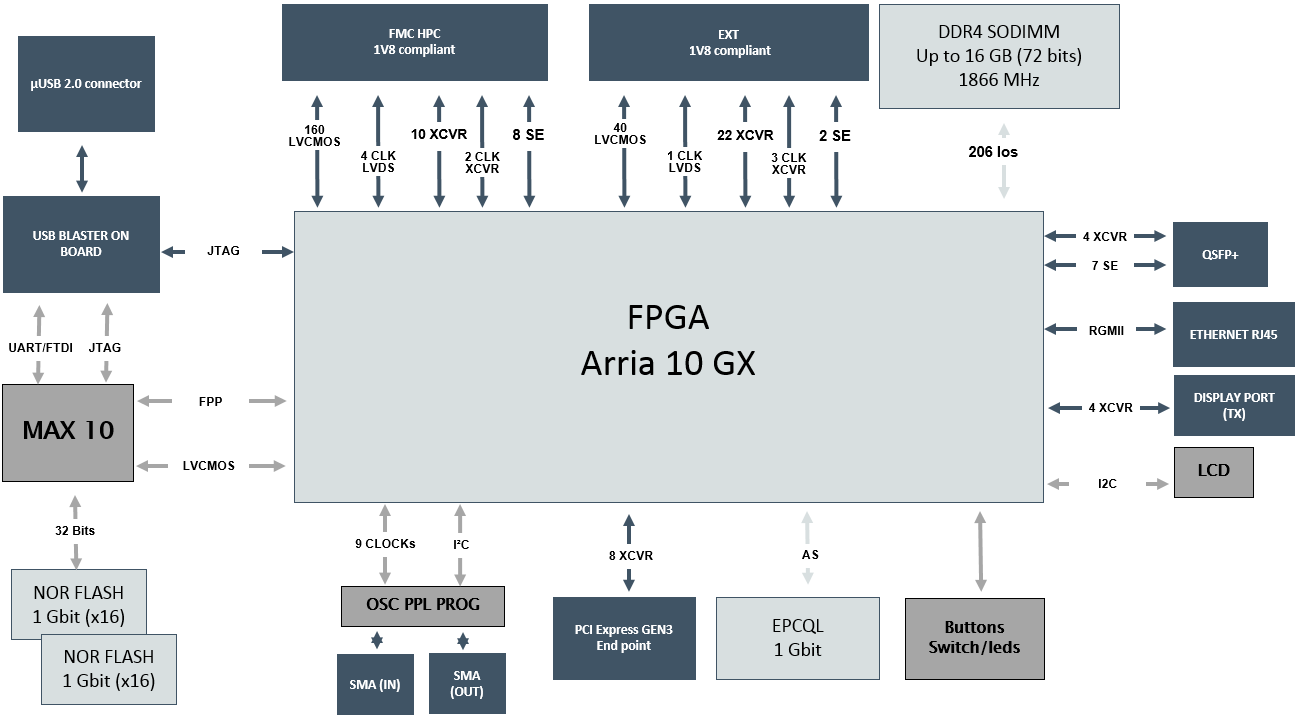

Block diagram of Attila Arria 10 GX - PNG - 49.6 kb
Block diagram of Attila Arria 10 GX
